Manual: Custom Action Plugin

Overview

A Custom Action Plugin is a system that allows you to create custom Actions and Conditions using GDScript and use them in the Visual Script editor just like built-in Actions and Conditions.

Installing a Custom Action Plugin

This section assumes that you already have the plugin file (a .gd script written in the required format).

  1. Place the plugin script (.gd) in any folder within your project.
    (The plugin will be loaded automatically.)

  2. Open the Visual Script editor.

  3. If the plugin provides a Condition, select Add Condition on any transition link.
    If the plugin provides an Action, select Add Action on any state.

  4. Switch the category tab at the top from the default AGMaker tab to a custom tab such as CustomCondition, OfficialPlugin, or another plugin-defined category.
    (The tab name is defined by the plugin author, so the displayed name may vary between plugins.)

  5. If the plugin’s Action or Condition appears in the list, it can be used just like any built-in Action or Condition.

Note: When updating a plugin to a newer version, replace the existing plugin file rather than installing it alongside the old one. Otherwise, an error indicating that a class name conflict has occurred may be generated.

Creating a Custom Action Plugin

Custom Action Plugins currently support GDScript only.

Create a .gd script file anywhere in your project and follow one of the formats below.

Creating an Action

@tool
extends AGMPluginAction
class_name CustomAction

## Numeric value
@export var num: float = 0.0

## Attribute
@export_enum("Fire", "Water", "Earth") var elements: int = 0

# Defines the tab name
func get_plugin_tab_name() -> String:
	return "Tab"

# Defines the group name
func get_group_name() -> String:
	return "Group"

# Description shown in the tooltip when hovering over the item in the Add dialog
func get_description() -> String:
	return "Description"

# Called when entering a state
func on_state_enter(p_owner: Object) -> void:
	print("AGMPlugin : CustomAction: on_state_enter")

# Called every frame while the state is active
func on_state_update(p_owner: Object, p_delta: float) -> void:
	print("AGMPlugin : CustomAction: on_state_update")

	var gameobject: GameObject = p_owner as GameObject
	var basesettings: BaseSettings = gameobject.get_base_settings()

	basesettings.set_hp(num)

# Called when exiting a state
func on_state_exit(p_owner: Object) -> void:
	print("AGMPlugin : CustomAction: on_state_exit")

Creating a Condition

@tool
extends AGMPluginCondition
class_name CustomCondition

# Defines the tab name
func get_plugin_tab_name() -> String:
	return "Tab"

# Defines the group name
func get_group_name() -> String:
	return "Group"

# Description shown in the tooltip when hovering over the item in the Add dialog
func get_description() -> String:
	return "Description"

# Called when entering the condition
# (Triggered when entering the state)
func on_condition_enter(p_owner: Object) -> void:
	print("AGMPlugin : CustomCondition: on_condition_enter")

# Called continuously to evaluate the condition
func on_judge_condition(p_owner: Object, p_delta_time: float) -> bool:
	print("AGMPlugin : CustomCondition: on_judge_condition")

	var gameobject: GameObject = p_owner as GameObject
	var basesettings: BaseSettings = gameobject.get_base_settings()

	if basesettings.get_hp() <= 0:
		return true
	else:
		return false

# Called when exiting the condition
# (Triggered when leaving the state)
func on_condition_exit(p_owner: Object) -> void:
	print("AGMPlugin : CustomCondition: on_condition_exit")

Tips for Writing Plugin Code

AGMPluginAction and AGMPluginCondition do not inherit from Node2D.

Instead, plugin logic should typically operate on the owning object, such as:

  • GameObject (inherits from CharacterBody2D)
  • Area2DGameObject (inherits from Area2D)

These can be accessed through the owner parameter and used to implement the plugin’s functionality.

When developing a large plugin containing multiple Actions and Conditions, it is recommended to create a shared utility script and build an inheritance hierarchy around it. This helps centralize common functionality and improves maintainability.

1 Like

Manual: Creating Custom Actions/Conditions Using AI

Creating Custom Action Plugins Using AI

If you want to create your own actions or conditions without programming experience, consider using AI.

Custom action plugins are created using the features of the Godot Engine, which serves as the base engine. Since Godot Engine is widely used in the training data of current AI models, it integrates well with AI-generated code and may allow for the generation of plugin code suitable for ACTION GAME MAKER.

Examples of Prompts for AI

Example for Creating an Action

Input a prompt like the following into the AI:

This is a script to create a plugin for ACTION GAME MAKER, a custom editor for Godot Engine 4.4.

ACTION GAME MAKER is an FSM-type visual script editor that utilizes the basic features of Godot Engine.

The owner of the plugin is one of the following:

  • GameObject (a custom node based on CharacterBody2D)

  • Area2DGameObject (a custom node based on Area2D)

GameObject holds data-saving nodes such as VariableSettings, and can also utilize a project-wide database. Refer to the following for the access API:

Manual: Method/Signal/API List

Below is sample code for adding a new action.

@tool
extends AGMPluginAction
class_name CustomAction

## Numeric value
@export var num: float = 0.0

## Attributes
@export_enum("Fire", "Water", "Earth") var elements: int = 0

# Define the tab
func get_plugin_tab_name() -> String:
    return "Tab"

# Define the group
func get_group_name() -> String:
    return "Group"

# Define the description
func get_description() -> String:
    return "Description content"

# Called when entering the state
func on_state_enter(p_owner: Object) -> void:
    print("AGMPlugin : CustomAction: on_state_enter")

# Called continuously during the state
func on_state_update(p_owner: Object, p_delta: float) -> void:
    print("AGMPlugin : CustomAction: on_state_update")

    var gameobject: GameObject = p_owner as GameObject
    var basesettings: BaseSettings = gameobject.get_base_settings()

    basesettings.set_hp(num)

# Called when exiting the state
func on_state_exit(p_owner: Object) -> void:
    print("AGMPlugin : CustomAction: on_state_exit")

Based on this sample code, please create a plugin that performs the [Desired Behavior].

Example for Creating a Condition

Creating a condition is similar, but use the sample code for conditions.

This is a script to create a plugin for ACTION GAME MAKER, a custom editor for Godot Engine 4.4.

ACTION GAME MAKER is an FSM-type visual script editor that utilizes the basic features of Godot Engine.

The owner of the plugin is one of the following:

  • GameObject (a custom node based on CharacterBody2D)

  • Area2DGameObject (a custom node based on Area2D)

GameObject holds data-saving nodes such as VariableSettings, and can also utilize a project-wide database. Refer to the following for the access API:

Manual: Method/Signal/API List

Below is sample code for adding a new condition.

@tool
extends AGMPluginCondition
class_name CustomCondition

# Define the tab
func get_plugin_tab_name() -> String:
    return "Tab"

# Define the group
func get_group_name() -> String:
    return "Group"

# Define the description
func get_description() -> String:
    return "Description content"

# Called when entering the condition
func on_condition_enter(p_owner: Object) -> void:
    print("AGMPlugin : CustomCondition: on_condition_enter")

# Called continuously for condition judgment
func on_judge_condition(p_owner: Object, p_delta_time: float) -> bool:
    print("AGMPlugin : CustomCondition: on_judge_condition")

    var gameobject: GameObject = p_owner as GameObject
    var basesettings: BaseSettings = gameobject.get_base_settings()

    if basesettings.get_hp() <= 0:
        return true
    else:
        return false

# Called when exiting the condition
func on_condition_exit(p_owner: Object) -> void:
    print("AGMPlugin : CustomCondition: on_condition_exit")

Based on this sample code, please create a plugin with the [Condition to Check] as the condition.

Tips for Giving Instructions

  • AI agents may sometimes get the API access paths or method names wrong. In such cases, refer to the above documentation and provide the correct API information to the AI to request regeneration.

  • To avoid conflicts, we recommend adjusting the class_name, tab names, and group names yourself.

  • When creating movement-related actions, you must stop the movement control on the ACTION GAME MAKER side. Therefore, set GameObject.is_release_move_control to true before implementing your own movement logic.

1 Like

Sample Official Custom Action Plugins

These can also be added by selecting “CustomActionPlugin” as a template in “Create New Object”.

Custom Actions

Rotate According to Movement Direction

CA_RotateToMoveDirection.gd (1.7 KB)

Sine Curve Movement

CA_SineCurveMove.gd (2.2 KB)

Push a Physics Node (RigidBody)

CA_PushRigidBody.gd (1.3 KB)

Custom Conditions

Transition Based on Light “Brightness”

CC_CheckBrightness.gd (2.4 KB)

Transition When Variable Value Is Within a Certain Range

CC_VariableRange.gd (9.9 KB)

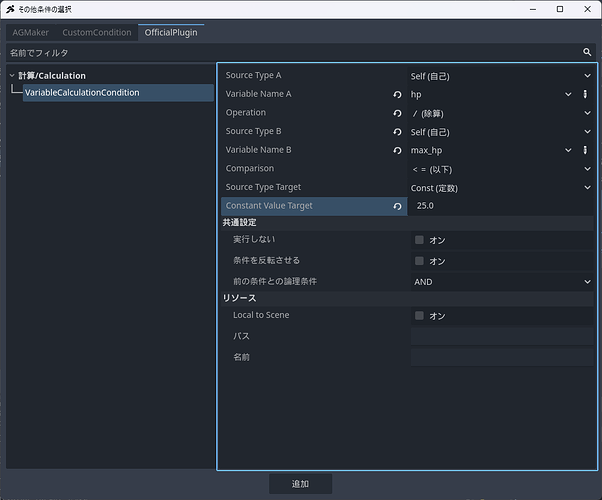

Transition Based on the Result of Arithmetic Operations on Two Variables

CC_VariableCalculationCondition.gd (13.6 KB)

2 Likes

Translating Custom Action Plugins

Starting from v1.3.3, you can translate custom actions by attaching translation files.

Translatable Parts

  • You can translate property names and tooltips for properties.
  • Class names (the names displayed in the list) and group names cannot be translated, but their tooltips can.

How to Implement Translations

Translation data is loaded by placing a CSV file created according to the specified format directly into the editor_translations folder within the plugin.

[Example Folder Structure]

res://addons/
└── custom_action_plugin/
├── custom_action.gd
└── editor_translations
└── custom_action.csv

  • The editor_translations folder must be at the same level as the custom action’s GDScript and directly under it. It works regardless of whether it is placed in the addons folder or any other location outside custom_action_plugin.
  • The name of the GDScript does not need to match the name of the CSV file.
  • One CSV file can be used for multiple GDScripts.

Sample CSV File

context,key,ja,en,ko,zh_CN,zh_TW,pt_BR,es_AR,de,ru
"CustomAction","Description","Custom Action: Tooltip","Custom Action: Tooltip","커스텀 액션: 툴팁","自定义动作:工具提示","自訂動作:工具提示","Ação personalizada: dica de ferramenta","Acción personalizada: descripción emergente","Benutzerdefinierte Aktion: Tooltip","Пользовательское действие: подсказка"
"CustomAction","group","Group","Group","그룹","组","群組","Grupo","Grupo","Gruppe","Группа"
"CustomAction:test_num","test_num(Number Tooltip)","Number Tooltip","Number tooltip","숫자 툴팁","数值工具提示","數值工具提示","Dica de ferramenta do número","Descripción emergente del número","Zahlen-Tooltip","Подсказка для числа"
"CustomAction:test_num","test_num","Number","Number","숫자","数值","數值","Número","Número","Zahl","Число"
"CustomAction:test_elements","test_elements(Element Tooltip)","Element Tooltip","Element tooltip","속성 툴팁","属性工具提示","屬性工具提示","Dica de ferramenta do elemento","Descripción emergente del elemento","Element-Tooltip","Подсказка для элемента"
"CustomAction:test_elements","test_elements","Element","Element","속성","属性","屬性","Elemento","Elemento","Element","Элемент"
"CustomAction:test_elements","Fire","Fire","Fire","불","火","火","Fogo","Fuego","Feuer","Огонь"
"CustomAction:test_elements","Water","Water","Water","물","水","水","Água","Agua","Wasser","Вода"
"CustomAction:test_elements","Earth","Earth","Earth","땅","土","土","Terra","Tierra","Erde","Земля"

Details of Columns

  • context specifies which property of the class it is associated with. However, descriptions returned by export_group and get_description() do not have associated properties, so they are omitted.
  • key specifies the identifier defined in the script.
  • The subsequent columns define the text according to the language settings.

Translating Tabs, Groups, and Classes (v1.3.4+)

Starting from v1.3.4, you can translate tabs, groups, and classes. The sample is as follows.
Note that for tabs and groups, only the key is provided, and the context is left blank.

context,key,ja,en,ko
,"Tab","Tab (JP)","Tab (EN)","Tab (KR)"
,"Group","Group (JP)","Group (EN)","Group (KR)"
"CustomAction","CustomAction","Custom Action (JP)","Custom Action (EN)","Custom Action (KR)"
  • context indicates where the class belongs. Since tab and group names are not data of the class itself, the context column is left empty.

Tips for Writing CSV

  1. Headers (context,key,...) should not be quoted.
  2. From the second line onwards, enclose all items in double quotes.
  3. Use UTF-8 with BOM.
  4. Use CRLF line endings.
