[Script Library] Baz Vehicle Movement Settings

[Baz]

BazVehicleMovementSettings

360° top-down movement for any GameObject. Tank mode (turns in place) or Vehicle mode (only turns while moving). Optional smooth acceleration.

DOWNLOAD:
baz_vehicle_movement_settings.gd (10.0 KB)

What it does

Rotates your GameObject freely in any direction and moves it the way it’s facing.

• Tank: rotates in place even when stopped
• Vehicle: only rotates while moving forward or backward

Turn on Accelerated for smooth ramp-up and slow-down.

Setup

1. Save baz_vehicle_movement_settings.gd anywhere in your project. Open the GameObject scene you want to control, add a child Node2D, attach the script.

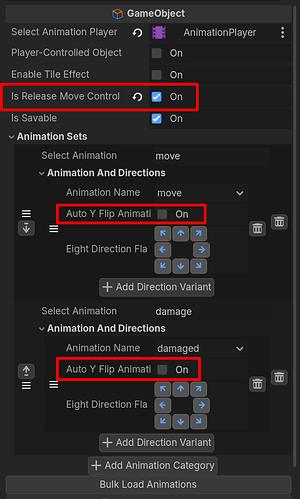

2. On the parent GameObject, set:

Setting	Value
Is Release Move Control	On
Animation Sets > Auto Y Flip Animation	Off (for every animation)

Y Flip off is important. It mirrors the sprite when reversing, which breaks 360° rotation.

3. Draw your sprite pointing right (Godot’s forward direction). If it points up, rotate the GameObject node -90° in the 2D viewport. Whatever rotation you set is the starting facing direction in-game.

4. Configure the inspector:

Field	What it does
Move Forward / Backward / Turn Left / Turn Right Input	Input action dropdowns. Defaults to arrow_up/down/left/right. Pick “Unset” to disable.
Movement Type	Tank or Vehicle
Forward / Backward Speed	Top speed in pixels per second
Left / Right Rotation Speed	Turn rate in degrees per second
Accelerated	OFF = instant top speed. ON reveals accel/decel fields
Debug Enabled	Prints movement info to console

Hover any field for a tooltip.

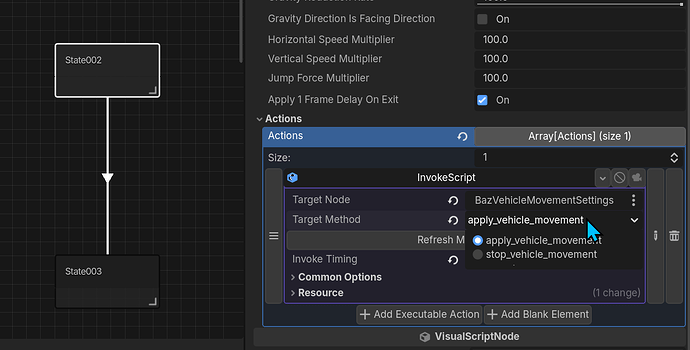

5. In the GameObject’s visual script, pick your movement state (usually Move) and add an InvokeScript Action:

   • Target Node: BazVehicleMovementSettings
   • Target Method: apply_vehicle_movement
   • Invoke Timing: OnStateUpdate

6. (Optional) For a stop/damage/death state, add another InvokeScript Action:

   • Target Method: stop_vehicle_movement
   • Invoke Timing: OnStateEnter

Conditions

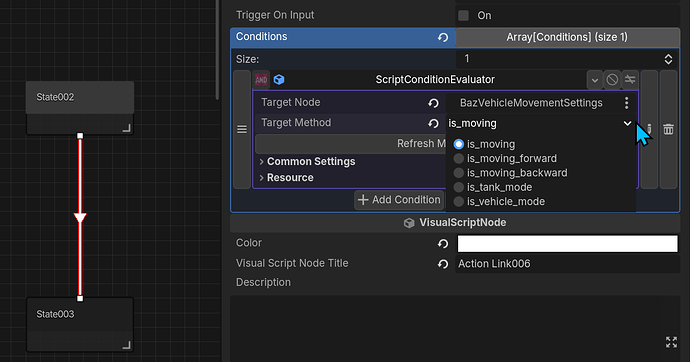

Five is_* conditions for ScriptConditionEvaluator (useful for idle vs moving animation transitions):

Method	True when
is_moving	speed is non-zero
is_moving_forward	speed is positive
is_moving_backward	speed is negative
is_tank_mode	Movement Type is Tank
is_vehicle_mode	Movement Type is Vehicle

Tips

• Input action not showing up? Define it in Project Settings > Input Map. Built-in ui_* actions are hidden on purpose.
• “Unset” disables a binding. Good for one-way vehicles or stationary turrets.
• Accelerated mode uses Forward/Backward Speed as the max cap. Accel values control how fast you get there.
• The script auto-sets CharacterBody2D motion mode to Floating on start. Required for 360° movement, no config needed.
