TutorialProject, Collision, BaseDecoration

[Brasten]

• Help -> Copy System Info: Action Game Maker v1.0.2.rc based on Godot v4.3 (6fe63e52a) - Windows 10.0.19045 - GLES3 (Compatibility) - NVIDIA GeForce RTX 4060 Ti (NVIDIA; 32.0.15.6094) - Intel(R) Core™ i7-8700K CPU @ 3.70GHz (12 Threads)

• AGMaker Version: 1.0.2 — 1.04

• OS: Windows 10.0.19045

• CPU: Intel(R) Core™ i7-8700K

• GPU: NVIDIA GeForce RTX 4060 Ti (NVIDIA; 32.0.15.6094)

• Memory size: NA

• Symptoms: TutorialProject , res://game_scene:SceneLayer/BaseLayer/BaseDecoration , right-side stair collision blocks movement

• Steps to reproduce:

1. Place right-side stair tiles, index (4,0) to (7,2)
2. As a selected pattern or one at a time
3. res://Object_Sampleplayer.tscn approaches from bottom left
4. Collision with tile corners of tile index (5,0) or (6,1) blocked
5. Additional tile at (6,12) impacted

Resolution:

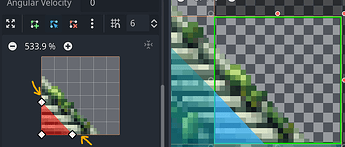

The Collision Polygons of the stairs are misaligned, and need to be corrected.

Recommendation:

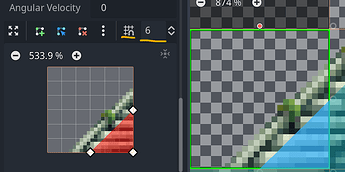

Use Grid Snapping 2, 4, or 6 to adjust.
